Outdoor UHF antenna
|
|
||||
|---|---|---|---|---|
|
Code |
9003955 |
9003957 |
9003960 |
0252845 |
|
Number of elements |
26 |
21 |
12 |
28 |
|
Channels |
21-48 |
21-48 |
21-48 |
21-48 |
|
Frequency range |
470 – 694 MHz |
-- |
470 – 694 MHz |
-- |
|
Gain |
17.5 dB |
14.5 dB |
11.5 dB |
13.5 dB |
|
Lenght |
1085 mm |
875 mm |
767 mm |
1040 mm |
|
Max. mast diameter |
-- |
-- |
767 mm |
50 mm |

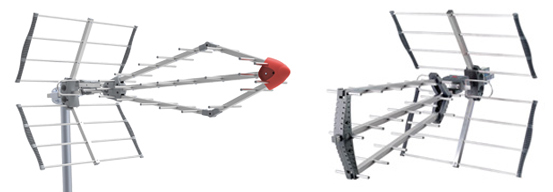

Diamond Hydra 35G
Eye LOG 2845 FG
|
|
|
|---|---|
|
Code |
9003953 |
|
Number of elements |
5 |
|
Channels |
21-48 |
|
Frequency range |
470 - 694 MHz |
|
Gain |
9.5 dB |
|
Front to back ratio |
8 - 13 dB |
|
Half power beam width Horizontal (-3 dB) |
50º |
|
Half power beam width Vertical (-3 dB) |
60º |
|
Impedance |
75 Ohm |
|
Length |
435 mm |
|
Weight |
0,67 kg |
|
Individual Packing Dimensions |
530 x 80 x 180 mm |
|
Accessories included |
Connector protector |
Phoenix
