From 2 fibers::F202 D5

Code

5200702

  Description

500m spool with 2 Fibers Single Mode LSZH cable

  Monomode Fiber type

G657A2

  Core diameter

Ø 9.2±0,2 μm

  Cladding diameter

Ø 125±0,7 μm

  Buffer coating
         Diameter
         Type
         Material
         Colors

Ø 900±50 μm
Tight
LSZH
1 Red, 1 Green

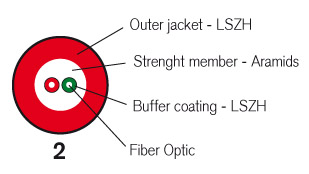

  Outer jacket
         Diameter
         Fibers
         Strenght member
         RIP cord
         Material
         Color

Ø 4,0±0,5 mm
2
Aramid yarn
Yes
LSZH
RAL 3004

  Attenuation
         1350nm
         1550nm

≤ 0,5 dB/Km
≤ 0,5 dB/Km

  Bend radius

20 mm

 Working temperature

-40 ~ +70 ºC

 Storage temperature

-40 ~ +70 ºC

 Pull Test
         Long term
         Short term

600 N
1500 N

 Crush resistance
         Long term
         Short term

1350nm: ≤ 0,5 dB/Km
1550nm: ≤ 0,5 dB/Km

 Presentation

500 m plastic reel
