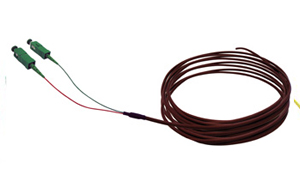

2 Fibers Pigtail with SC/APC connectors
ICTPIGTAIL 10 D |
ICTPIGTAIL 15 D |
ICTPIGTAIL 20 D |
|
---|---|---|---|
Code |
5200810 |
5200815 |
5200820 |
Description |
2 Fibers Single |
2 Fibers Single |
2 Fibers Single |
Monomode Fiber type |
G657A2 |
G657A2 |
G657A2 |
Fiber Mode |
SM Ø 9/125 μm |
SM Ø 9/125 μm |
SM Ø 9/125 μm |
Buffer coating |
|
|
|
Outer jacket |
|
|
|
Insertion loss |
≤ 0,2 dB |
≤ 0,2 dB |
≤ 0,2 dB |
Return loss |
≥ 60 dB |
≥ 60 dB |
≥ 60 dB |
Durability (500 connections) |
≤ 0,2 dB |
≤ 0,2 dB |
≤ 0,2 dB |
Working temperature |
-40 ~ +85 ºC |
-40 ~ +85 ºC |
-40 ~ +85 ºC |
Storage temperature |
-40 ~ +85 ºC |
-40 ~ +85 ºC |
-40 ~ +85 ºC |
Pull Test |
600 N |
600 N |
600 N |
Lenght |
30 m |
40 m |
50 m |
Connectors |
SC/APC |
SC/APC |
SC/APC |
Bend radius |
20 mm |
20 mm |
20 mm |
Presentation |
Individual bag |
Individual bag |
Individual bag |
ICT PIGTAIL series Dca
ICTPIGTAIL 30 D |
ICTPIGTAIL 40 D |
ICTPIGTAIL 50 D |
|
---|---|---|---|
Código |
5200830 |
5200840 |
5200850 |
Descripción |
2 Fibers Single |
2 Fibers Single |
2 Fibers Single |
Monomode Fiber type |
G657A2 |
G657A2 |
G657A2 |
Fiber Mode |
SM Ø 9/125 μm |
SM Ø 9/125 μm |
SM Ø 9/125 μm |
Buffer coating |
|
|
|
Outer jacket |
|
|
|
Insertion loss |
≤ 0,2 dB |
≤ 0,2 dB |
≤ 0,2 dB |
Return loss |
≥ 60 dB |
≥ 60 dB |
≥ 60 dB |
Durability (500 connections) |
≤ 0,2 dB |
≤ 0,2 dB |
≤ 0,2 dB |
Working temperature |
-40 ~ +85 ºC |
-40 ~ +85 ºC |
-40 ~ +85 ºC |
Storage temperature |
-40 ~ +85 ºC |
-40 ~ +85 ºC |
-40 ~ +85 ºC |
Pull Test |
600 N |
600 N |
600 N |
Lenght |
10 m |
15 m |
20 m |
Connectors |
SC/APC |
SC/APC |
SC/APC |
Bend radius |
20 mm |
20 mm |
20 mm |
Presentation |
Individual bag |
Individual bag |
Individual bag |
ICT PIGTAIL series Dca
