Inductive outlets 5-1000 MHz with clamp. AO series



ATS 75



  Code

0500075



  Frecuency


IN-TV: 5-80 / 120-1000 MHz
IN-SAT: 87-108 MHz



  Insertion loss


IN-TV: < 1 dB
IN-SAT: < 2 dB



  Installation type

Final



ATS 75

Inductive outlets 5-2400 MHz with clamp. AO Universal series



AO 3U

AO 870

  Code

0500003-U

0500087

  Frecuency



IN-TV:   5-2400 MHz
IN-SAT: 5-2400 MHz

IN-TV:   5-862 MHz
IN-SAT: 950-2400 MHz

  IN-TAP loss






IN-TV: 5-300:       3,6 dB
IN-TV: 300-862:   3,7 dB
IN-TV: 950-2150: 6,2 dB
IN-SAT: 5-300:     4,5 dB
IN-TV: 300-862:   3,7 dB
IN-TV: 950-2150: 6,6 dB

IN-TV:   <2 dB
IN-SAT: <3 dB





  Insertion type

Clamp

Clamp

  Installation type

Final

Final

  Vdc pass

IN-SAT

IN-SAT

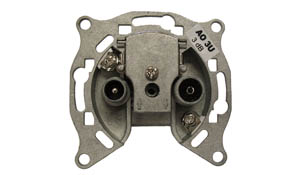

AO 3U




Inductive outlets 5-2400 MHz with clamp. AO Universal series closed



AOQ 790 C

AOQ 90 SC

  Code

0510790

0510090

  Frecuency


IN-TV:   5-790 MHz
IN-SAT: 950-2400 MHz

IN-TV:   5-70 / 120-862 MHz
IN-R:     87,5 - 108 MHz
IN-SAT: 950 - 2400 MHz

  IN-TAP loss


IN-TV:   <2 dB
IN-SAT: <2,5 dB


IN-TV:   < 3 dB
IN-R:     < 2 dB
IN-SAT: < 2 dB

  Insertion type

Quick connection

Quick connection

  Installation type

Final

Final

  Vdc pass

IN-SAT

IN-SAT

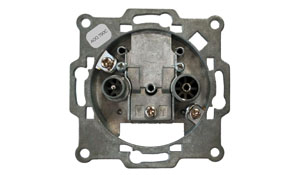

AOQ 790 C

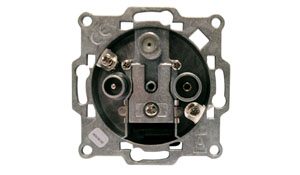

AOQ 90 SC
